DARIMO CARBON je mala španjolska tvrka, ali naveliko poznata po izradi ultralaganih komponenti (volani, lule volana, cijevi sjedala i obujmice) odnosno najlakših komponenti na svijetu. Komponente osim što su vrlo lagane i optimirane, vrlo su sigurne za korištenje budući da su podvrgnute brojnim testiranjima, kako na računalima, tako i u laboratoriju, i konačno na terenu. O kvaliteti ovih vrhunskih proizvoda dovoljno govori što ih koriste neka od najvećih imena svjetskog biciklizma. U nastavku su specifikacije preuzete sa službene DARIMO web stranice.

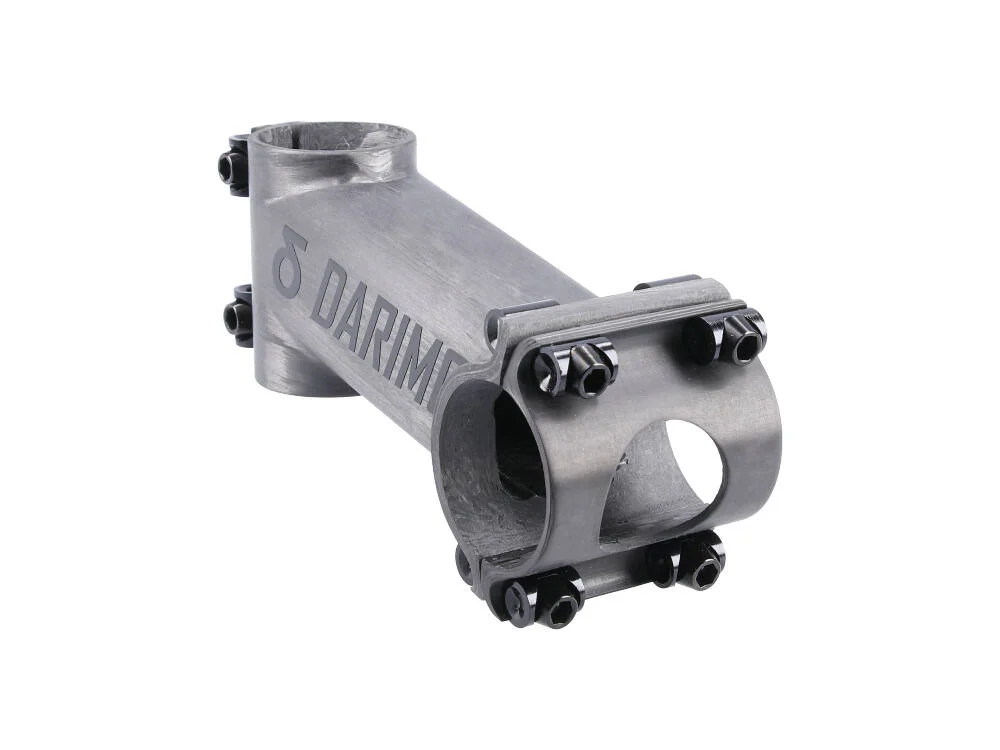

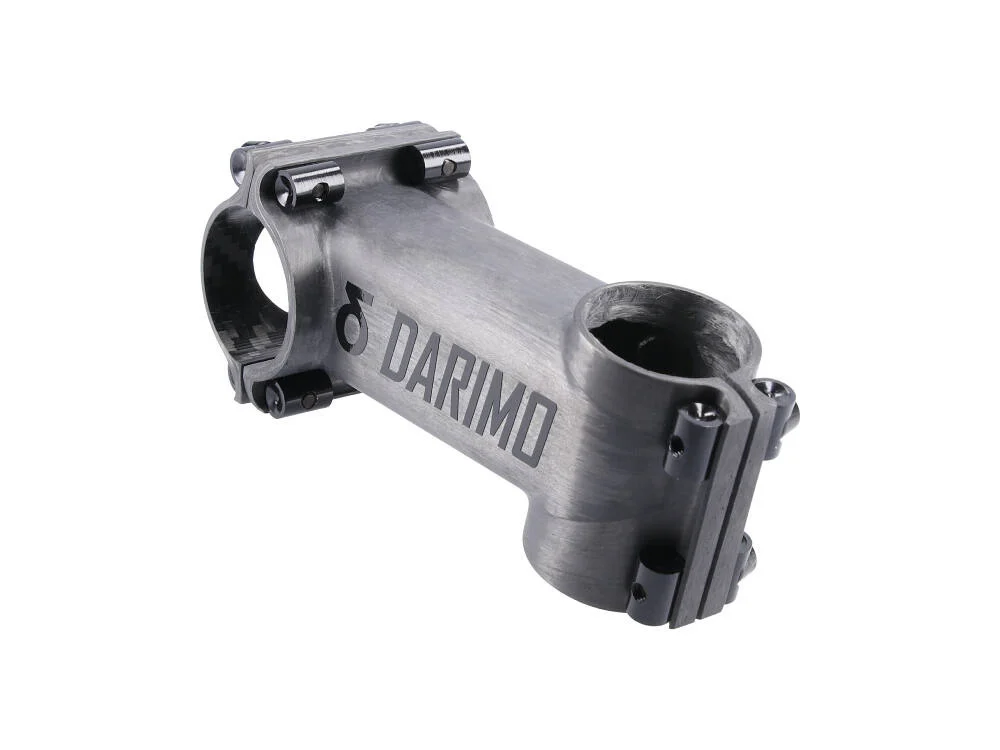

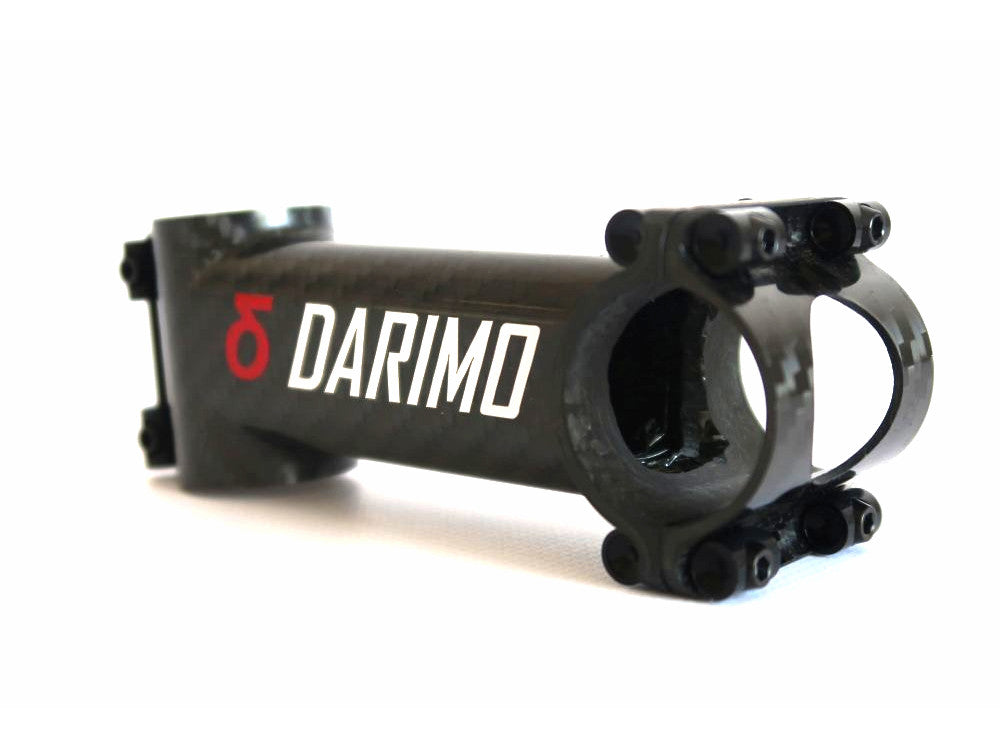

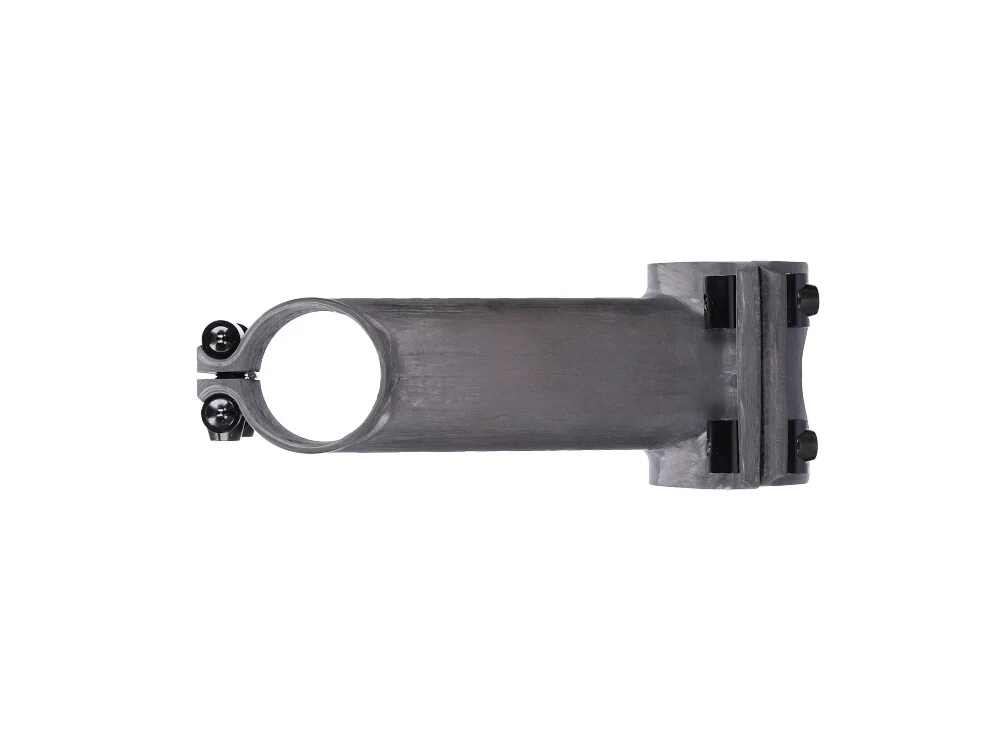

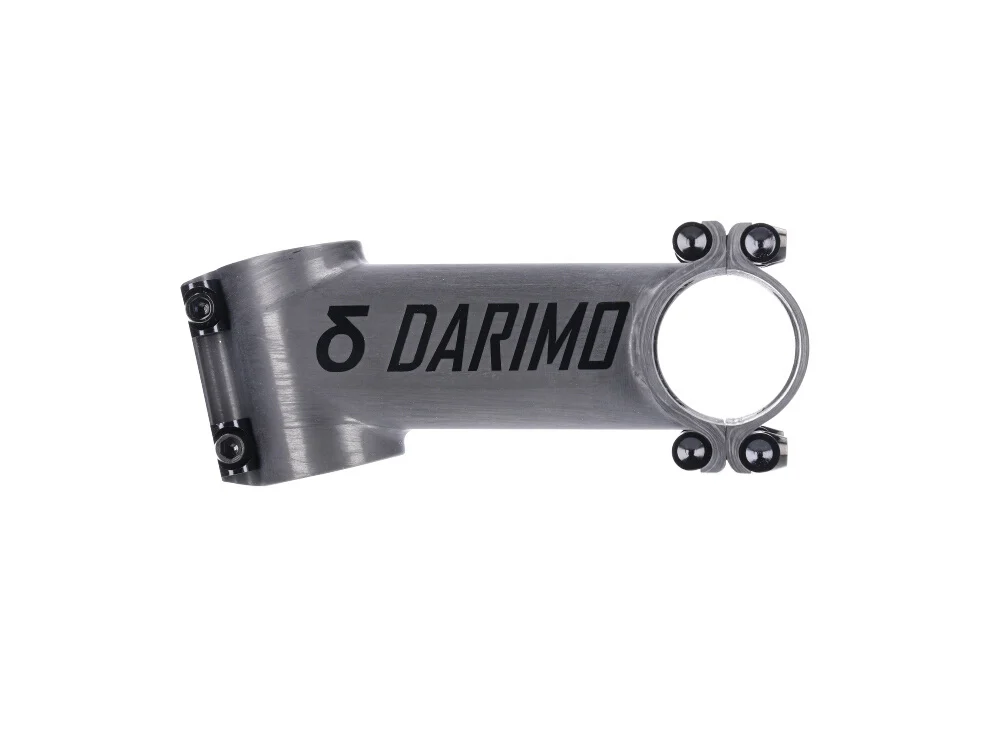

Introducing the new Darimo IX4 stem, the perfect stem for your road bike with just a weight of 74 grams in 100 mm length.
If you use our Ellipse Road handlebar or a MTB Handlebar, we recommend you the Darimo IX2 Stem.
The stem is manufactured in a single piece from unidirectional and bidirectional carbon fabrics. It has a careful construction and lamination that reduces weight maintaining vertical and torsional stiffness. The frontal cap is made of carbon fiber too.
Like all our products, each stem is laminated by hand, then the exact number of carbon layers with the correct direction is placed at each stem point.
In combination with carbon, M4 titanium screws are used with a bigger head to prevent damage during the assembly. The small nuts are made with anodized 7075 aluminum.
Finishes: 3K Gloss, 3K matte, UD matte, UD gloss (the UD finish may have small voids due to the flowing air and a weight gain of 3-4 grams).
Weight limit: The Darimo stem is safe and exceeds the tests of ISO 4210-2, but it is not recommended for riders over 90 kg, request the reinforced version if necessary.
Uses: Road, x-cross, MTB.
Clamping diameter: 31.8mm
Angles: -6º, -12º
Steering diameter: 1-1/8″.
Clamping width: 46mm
Stack height: 46mm
We continue increasing the range of options according the users demands, ask us the measure you need.
-Body and frontal cap: Unidirectional and bidirectional carbon fibre fabrics.
-Nuts: Anodized 7075 T6 aluminum.
-Bolts: Ti Gr5 M4.
60mm-65g 70mm-67g 80mm-69g 90mm-71g
100mm-74g 110mm-77g 120mm-80g 130mm-82g
If you want a different finish or if you are over 90 kg, just indicate it, we will manufacture a product according to your needs.
Why that shape?:
Why we produce a stem with not round section? Why not square?
It is not an arbitrary decision, it’s an engineered design.
After many computational finite elements analysis (FEA) we have manufactured the power with the perfect cross section.
The external dimensions allows an adequate alignment of the fiber with the handlebar and steering tuve. We have shown that a power with square-circular section (square with rounded edges), at equal weight, is torsionally stiffer and the stress is reduced by 20% compared to a perfectly square or round section. Therefore we have achieved the combination that provides the stiffer and lightness possible. The following graph shows the results of the analyses performed. We do not choose the shape, engineering chooses it.
