DARIMO CARBON je mala španjolska tvrka, ali naveliko poznata po izradi ultralaganih komponenti (volani, lule volana, cijevi sjedala i obujmice) odnosno najlakših komponenti na svijetu. Komponente osim što su vrlo lagane i optimirane, vrlo su sigurne za korištenje budući da su podvrgnute brojnim testiranjima, kako na računalima, tako i u laboratoriju, i konačno na terenu. O kvaliteti ovih vrhunskih proizvoda dovoljno govori što ih koriste neka od najvećih imena svjetskog biciklizma. U nastavku su specifikacije preuzete sa službene DARIMO web stranice.
The ultimate in lightweight handlebars for your road bike, the Darimo Ellipse road handlebar sets a new standard with a weight of just 128 grams in 420mm width.
The handlebar is entirely manufactured with carbon fiber, with an exclusive combination of bidirectional and unidirectional fabrics with the right orientation to achieve the best weight-resistance-stiffness ratio, always keeping in mind your safety. The proper arrangement of fiber layers has been achieved after finite element calculations and destructive tests.
This type of laminate can only be achieved with a completely handmade construction with a location of the carbon layers made by hand on each handlebar, with a number and arrangement of different layers at each point.
The center diameter is 31.8 mm, adapted to the current standards.

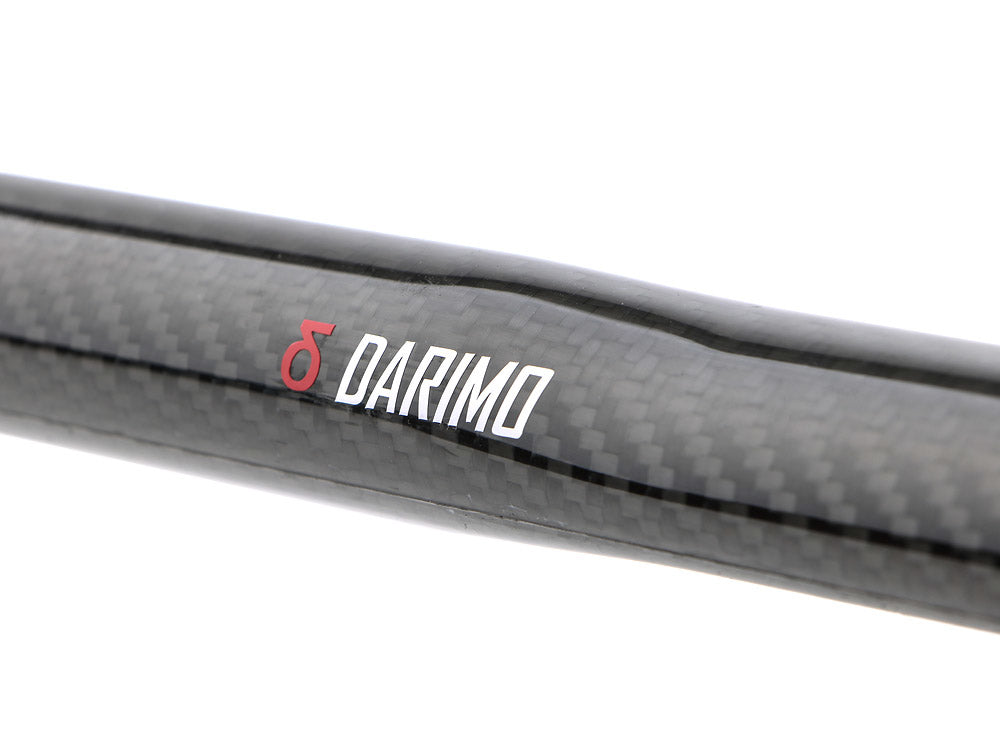

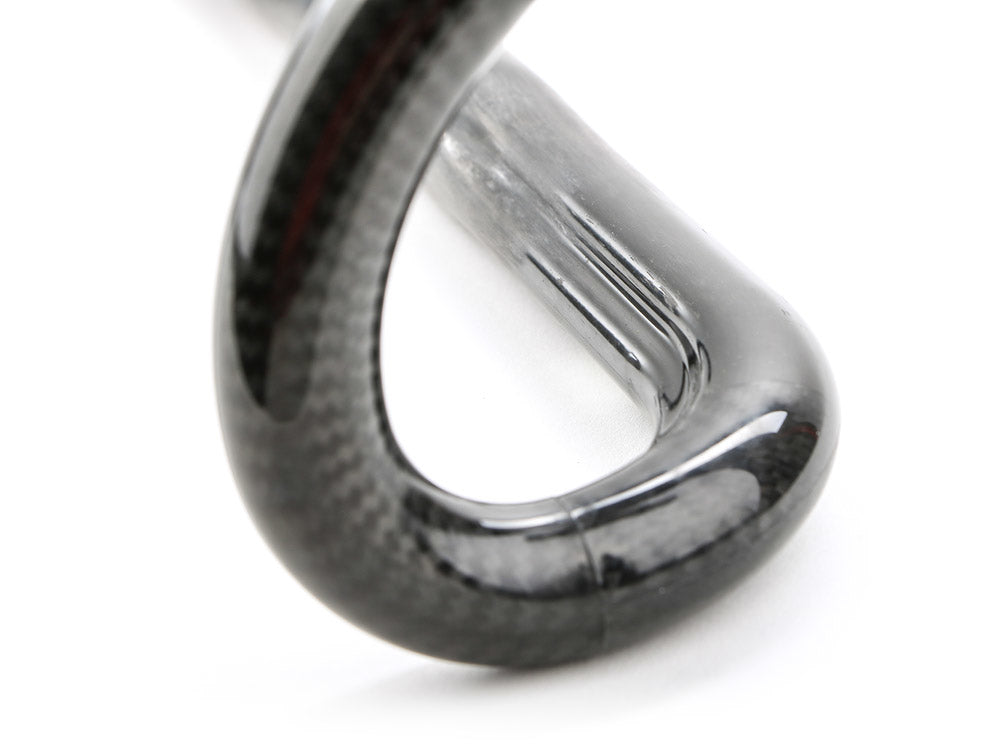

The upper part has a flattened shape to increase comfort during hours of riding. In the lower part it has external grooves for brake and shifters cables.

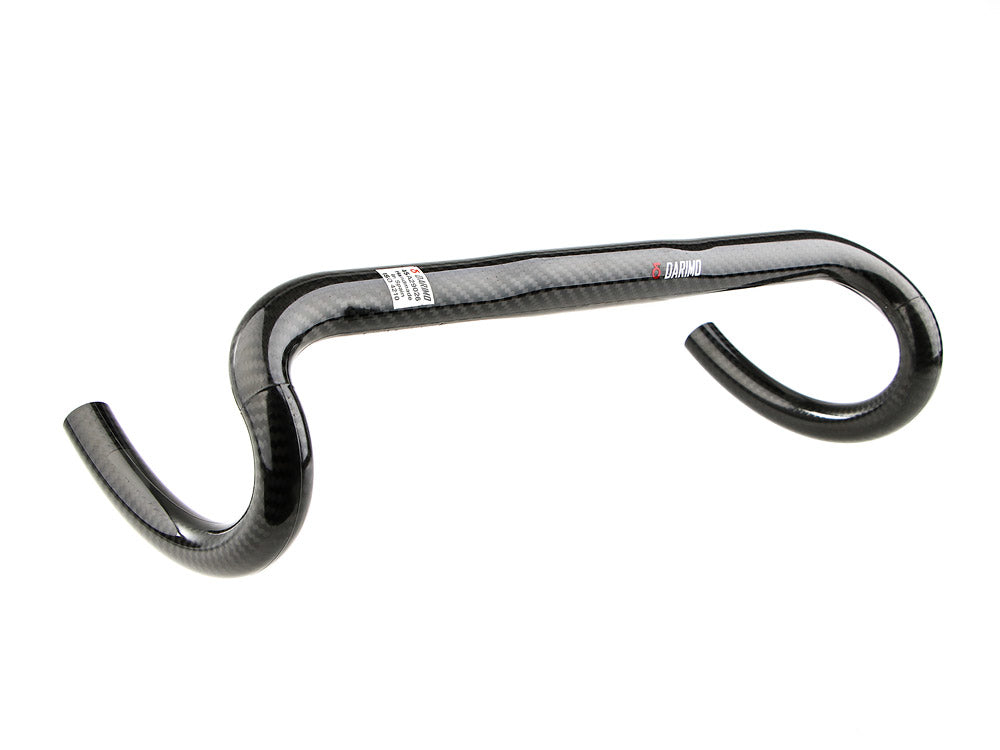

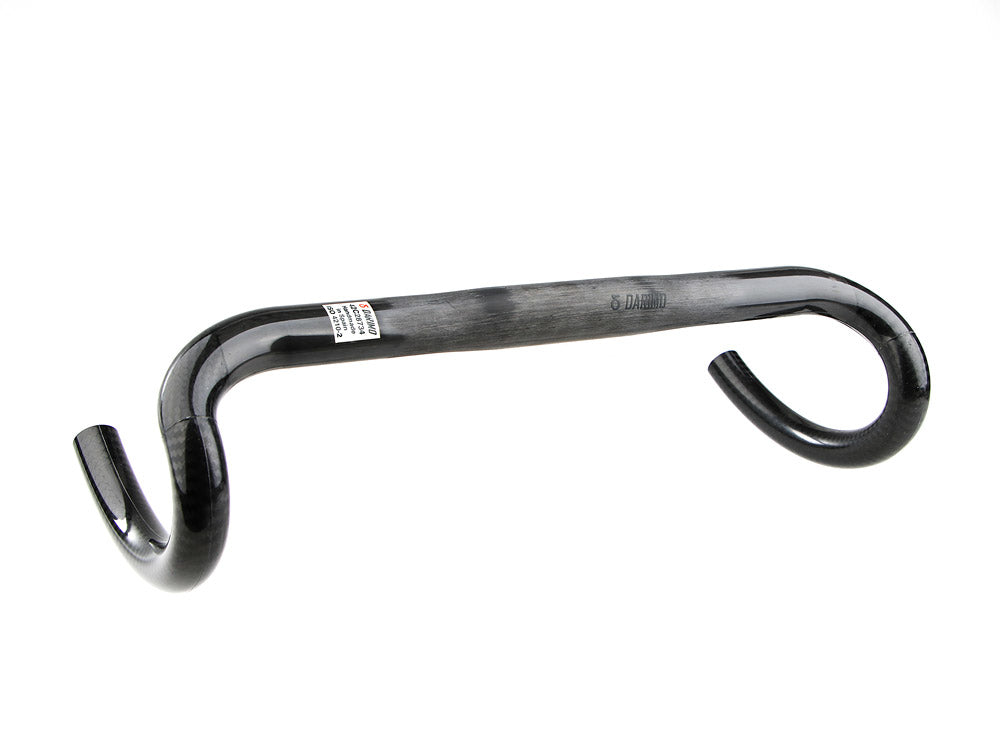

Measures: Currently manufactured in widths of 360-380-400-420-440mm measured from center to center. With a “compact” shape it has 77mm reach and 128mm drop.
Triathlon extension: The central zone has a sufficient width for assembling extensions, but you must request an specifically reinforced versión.

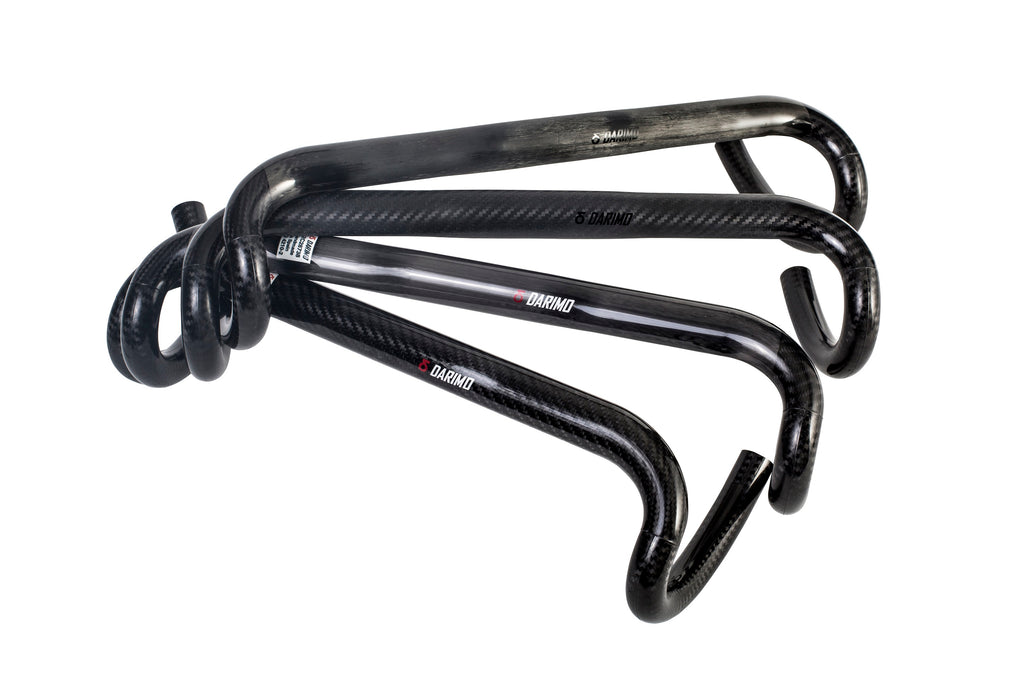

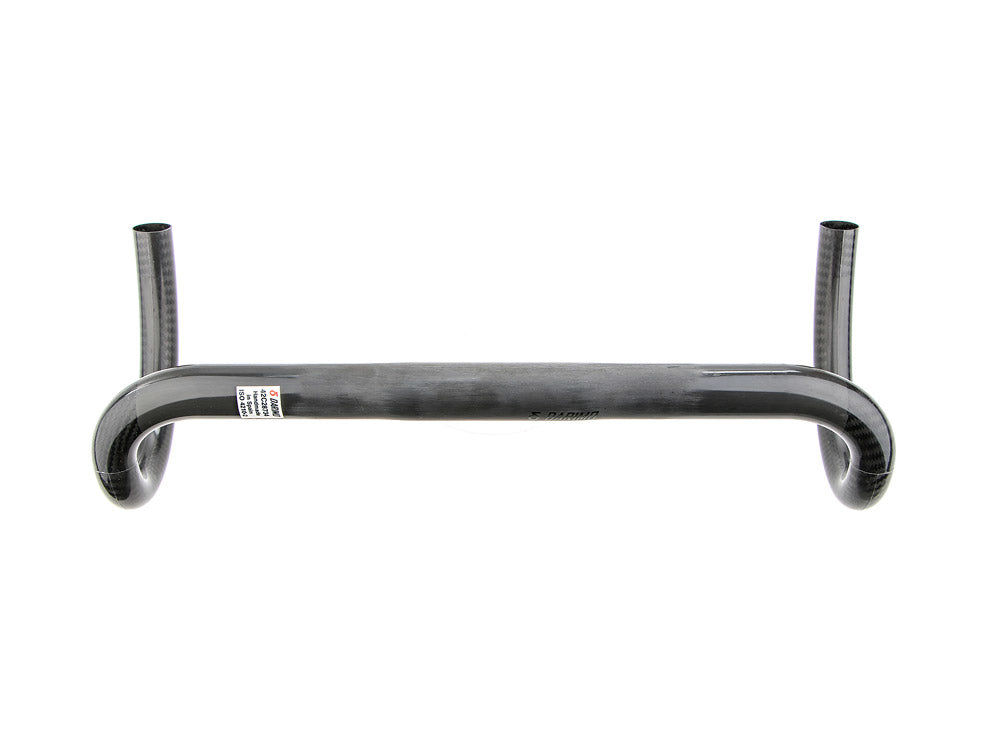

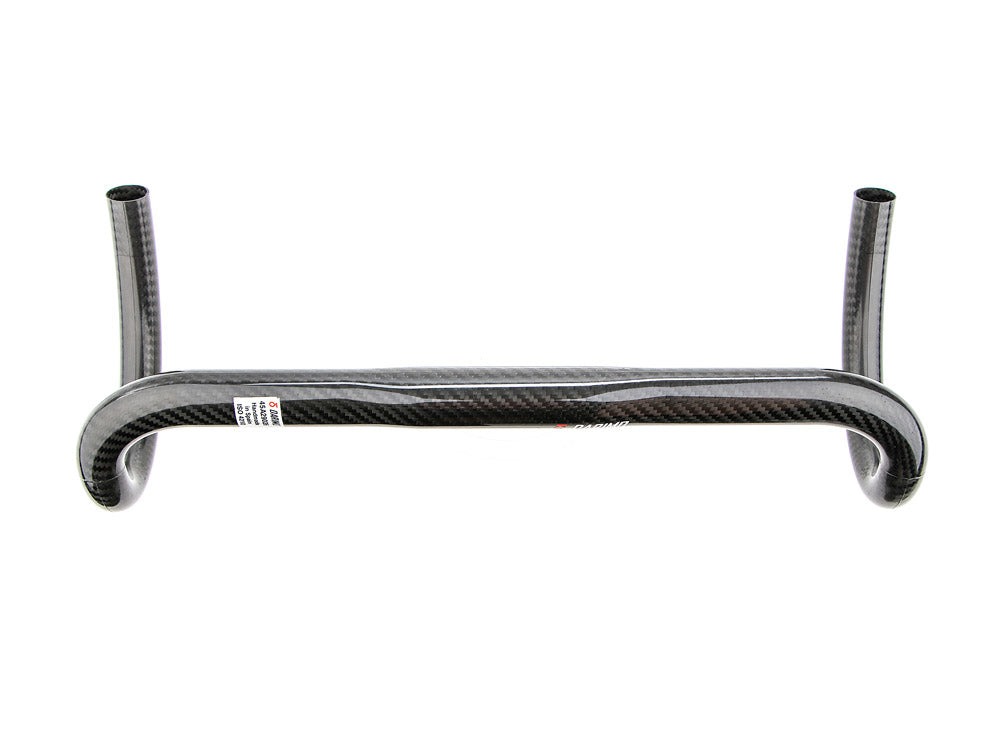

Finishing: There are four possible finishes with the combination of gloss or matt, bidirectional (3k) or unidirectional. The Unidirectional version, only in the central part, has an increase in weight of about 8 grams.
Weight limit: The Darimo handlebar is safe and exceeds the tests of the ISO 4210-2 standard, so it is valid for an overall system weight (bicycle, cyclist, luggage) of maximum 110 kg. In case of riders weighting more than 90kg, we recommend a reinforced version for a stiffness increase.
Use: Road, gravel, CX..
Di2 Version: On demand it’s possible to manufacture the handlebar with holes for the internal routing of electronic cables. In this case, it is necessary to specify where the holes are needed. It leads to an increase in weight depending on the number of holes since these areas must be reinforced.
If you want a more reinforced handlebar, no weight limit, or even exclusive optimization to further reduce weight, contact us and we will produce an exclusive handlebar for you. As it is produced in a totally manual way, we can adapt to the needs of the users.
440mm - 132g
420mm - 128g
400mm - 124g
380mm - 121g
360mm - 118g
