BERRIA

BELADOR 6 2023 - CUSTOM
> Dostupno po narudžbi

  • Akcija
  • Redovna cijena €3.317,94
PDV uključen.


Berria Belador model je cestovnog bicikla, namijenjen za uživanje kako na dugačkim asfaltiranim pravcima, tako i na najstrmijim brdskim cestama. Njegov aerodinamičan dizajn i lagani karbonski okvir omogućiti će vam da maksimalno uštedite vašu snagu i pritom uživate u vožnji.

Okvir ovog bicikla je karbonski, čvrst i dosta lagan, mase svega 990 grama. Vilica je također karbonska, sa flat-mount nosačem čeljusti disk kočnice. Volan, lula volana i cijev sjedala dolaze pod imenom Avanforce, a proizvod ih također Berria i na ove komponente daje 2 godine garancije. Udobnu vožnju na duge staze jamči sjedalo Fizik Antares. Pogonska grupa je Shimano 105 2x11, također sa Shimano 105 hidrauličnim disk kočnicama. Kotači se mogu birati između sljedeće dvije varijante: aluminijskih FULCRUM 800 DB te karbonskih VISION TC 40 DB Carbon , u kompletu sa kvalitetnim Vittoria Rubino gumama.

Personalizacija i odabir boja po želji kao i odabir duljine pogonskih kurbli, duljine lulice i širine volana omogućuje da vam bicikl dođe potpuno prilagođen. Ova usluga personalizacije bicikla ne naplaćuje se dodatno!

DIJELOVI:

OKVIR: Belador 5 DISC, Racing Geometry BGC Aero Shape Efficiency (ASE), Full carbon HM2X, Triple monocoque, Resin Matrix Nanotech, BB86 botton bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount System brake, 700x34 maximun tyre, Thru axle 12x142mm Speed Release type, weight 990g
VILICA: Belador Blade 5 full carbon fork.

VOLAN:

Avanforce Alloy 6061, wide 400, 420, 440mm
LULA VOLANA: Avanforce ICS2, -7°, Ø31.8, 90-100-110-120mm
CIJEV SJEDALA: Belador 5 SP, UD Carbon, 15 mm offset, ISP technology , weight 148g
SJEDALO: Selle Italia MODEL X BB FEC, Alloy rails, wide 143mm
PREDNJI MJENJAČ: SHIMANO 105 FD-R7000 Black
STRAŽNJI MJENJAČ: SHIMANO 105 Black RD-R7000-GS 22 Speed
RUČICA MJENJAČA: SHIMANO 105 ST-R7020 Disc Dual control 22 Speed
KAZETA: SHIMANO CS-R7000 11-30T
LANAC: SHIMANO CN-HG601-11
POGON: SHIMANO FC-R7000 Compact Hyperdrive 50x34 T Black
KOČNICE:

SHIMANO BR-R7070 Hyd Disc 160/F and 140/R SM-RT70 CL Rotor

KOTAČI:

- FULCRUM 800 DB, Aluminium, TLR, Rim 34 mm, 19 mm internal wide 1960g - 28 (front) 28 (rear), J Pull Spokes

- Vision TC 40 DB, Carbon, TLR , Rim 40 mm 1650g - 24 (front) 24 (rear), J-Bend Spokes

GUME:

Vittoria Rubino IV 28-622, Tubeless Ready, GRAPHENE 2.0, weight 270g

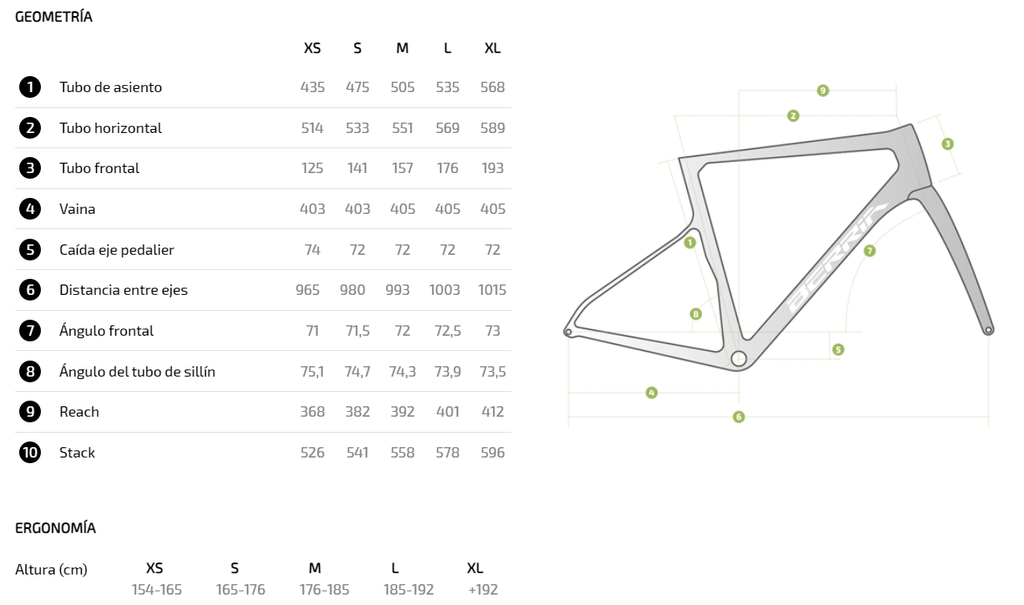

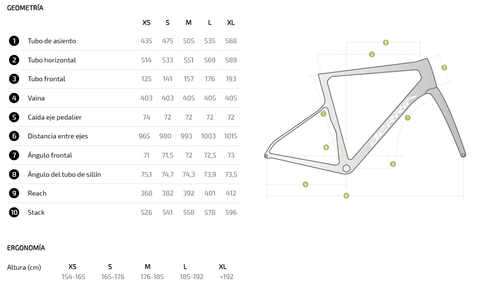

PREPORUČENE VELIČINE BICIKLA:

VELIČINA OKVIRA OD VISINE  DO VISINE
XS 154 165
S 165 176
M 176 185
L 185 192
XL 192 +



PERSONALIZACIJA:

Ovaj bicikl moguće je personalizirati odabirom kombinacije boja, te odabirom širine volana, dužine lule volana te duljine pogonskih kurbli. Svi bicikli se rade po narudžbi, te vas molimo da nas kontaktirate prije naručivanja. Sve dostupne varijante i boje ovog možete vidjeti na slici ispod kao i na sljedećoj poveznici: https://berriabikes.com/en/bikes-2022/carretera/racing/belador/belador-6/belador-6





KAMM TAIL SECTION

To achieve the ultimate blend of light weight, lateral stiffness and aero performance in ever-changing nature, we've developed unique Kamm Tail-inspired frame tubing. Designed for optimum interaction across the frameset, Belador's sophisticated tube shapes maximise efficiency whether you're climbing in the high mountains, managing crosswinds on the flat, or sprinting at the end of a crit!

OPTIMIZED AIR PRESSURE

One of the secrets to Belador's aerodynamics lies in the design of the frame-fork interface. Air is allowed to flow smoothly through the fork crown and around the tyre, limiting the turbulence generated by the wheels in motion. The resulting low air pressure minimizes destabilising and drag-inducing vortices in this most critical aerodynamic zone of the bike.

INTERNAL CABLE SYSTEM

The latest Belador frame design utilises ICS2 internal cable routing, prioritising clean aesthetics and component integration that directly feeds maximum performance.

POWER EFFICIENCY

Our 'Power Efficiency' technology as resulted in an extremely rigid carbon structure around ​​the bottom bracket, focusing rider power and minimising lateral flex. The rear triangle features flattened seatstays for clean aerodynamics, with an asymmetrical chainstay design to balance the forces through the drvetrain and non-drive side. Each tube features optimised for improved aero stability and minimised energy wastage.

FLAT MOUNT SYSTEM

Flat mount disc brake calipers smooth the connection between frame and brakes. This direct connection increases overall rigidity, braking power and modulation, while improving confidence under hard braking.

Meanwhile, 'Speed Release' thru-axle attachments improves ease of wheel fitting. With no need for an Allen key, its toolless design boasts the simplicity of traditional quick release axles with the performance benefits of a thru-axle system.
